Product Showcase

Discover what’s next from Lumen Efficient Design Inc. — a curated look at new and upcoming lighting innovations.

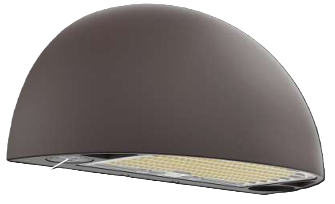

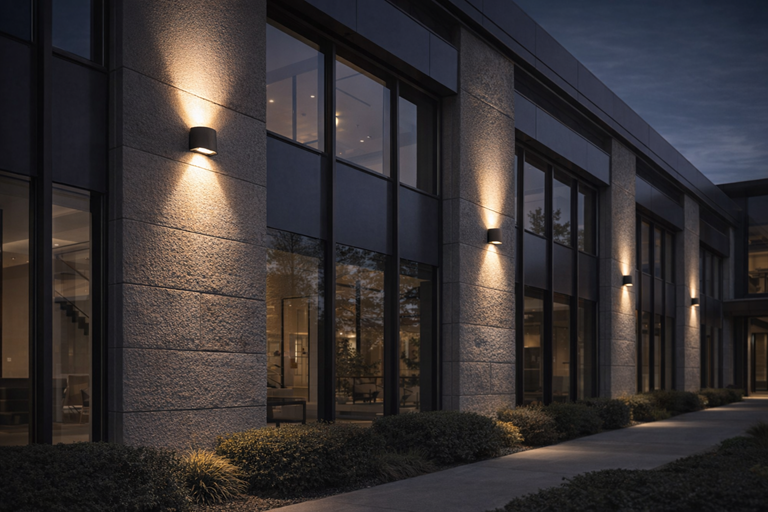

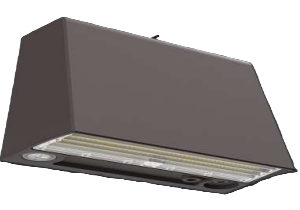

Architectural Accents with our new Up/Down and Cylinder Wall Packs

Elevate the facade.

These cylindrical up/down exterior fixtures sculpt the night with a quiet confidence — sending light upward to trace the architecture’s vertical rise, while a soft downward wash grounds the structure in a warm, inviting glow.

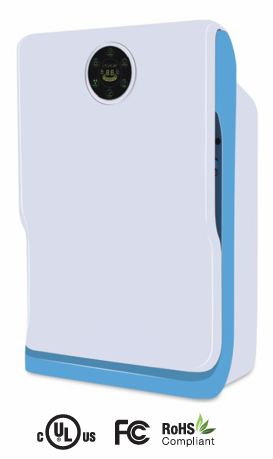

6-Stage Air Purification System

Advanced multi-stage filtration for modern indoor environments.

6-Stage Purification

This system utilizes a six-stage purification process combining mechanical filtration, composite media, and active treatment technologies to help reduce airborne particles and improve indoor air quality.

High-efficiency double composite filter cartridge design
Integrated ultraviolet (UV) sterilization cycle
Ionization cycle for additional air treatment
Pre-filter and composite filter cartridges for particulate capture
Optimized airflow for effective room coverage
Continuous filtration with ultra-quiet operation

Certified by:

cULus (safety compliance)
FCC (electromagnetic compatibility)
RoHS Compliant (hazardous substances restriction)

Features:

Six stages of purification
High efficiency double composite filter cartridge design
Ultraviolet sterilization and ionization cycles
Recommended room size: 118 ft² – 215 ft²
Ultra-quiet operation: 20.4–20.8 dB
Compact, modern design
Durable ABS modular construction
Three fan speed settings
Timer with sleep mode
Integrated touch control panel
Infrared (IR) remote control included
Filter change sensor and reminder
Pull tabs and integrated guides for quick filter replacement
CADR: 5,650 ft³/hour
Input voltage: 110–120 VAC
Frequency: 50/60 Hz
Projected AC motor life: 30,000 hours
1-year warranty

Plus:

Three-speed fan control via touch panel or IR remote
Timer with sleep mode for scheduled operation
Low-noise performance suitable for bedrooms and offices
Easy-access filter compartment for fast maintenance

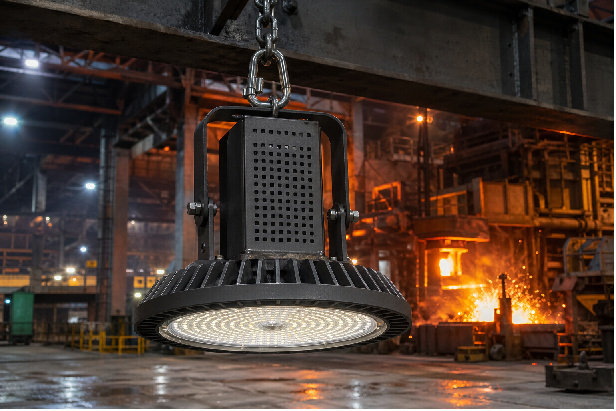

High temperature industrial LED luminaire installed in an industrial environment

Featured Product — High‑Temperature Industrial LED Luminaire

Engineered for extreme environments up to 70 °C, this high‑output industrial LED fixture delivers 34,600 lumens with LED3030 technology achieving up to 160 lm/W. A robust ENAC 44300 aluminum alloy heatsink and C4‑rated anti‑corrosion construction ensure long‑term reliability in demanding applications.

Precision optics, an impact‑resistant tempered glass lens, and IK08 durability provide controlled, high‑performance illumination. Dual input options (100–277Vac and 277–480Vac) pair with a Class 1 constant‑current driver, PF >0.95, 0–10V dimming, and integrated SPD for electrical resilience.

Designed for industrial resilience, the fixture features anti‑vibration hook mounting, ZAM‑finished brackets, SUS316 hardware, and a vented driver box for enhanced thermal management. Rated IP66 / NEMA 4X, it performs reliably from –30 °C to 70 °C with long LED lifespans up to 177,000 hours (L70).

A rugged, high‑temperature solution built for continuous duty in the harshest environments — backed by a 5‑year limited warranty.

LED Post Top - Scalable Outdoor Lighting Solution

The T02 LED Post Top delivers a refined, contemporary aesthetic with high-performance optics ideal for walkways, parking areas, parks, and public spaces. Its flip-up cover design and four mounting options simplify installation and maintenance while supporting flexible site integration.

Key Features

Optic Selectable Technology - three distributions (T3/T4/T5) in one fixture for tailored coverage.
Versatile Mounting - pole, wall, and direct mount brackets included.
High Efficacy - up to 150 lm/W for superior energy efficiency.
Selectable Performance - 3 CCT and 4 wattage options reduce SKUs and streamline specification.

Sleek, efficient, and adaptable - the T02 post top brings architectural quality and technical precision to every outdoor environment.
